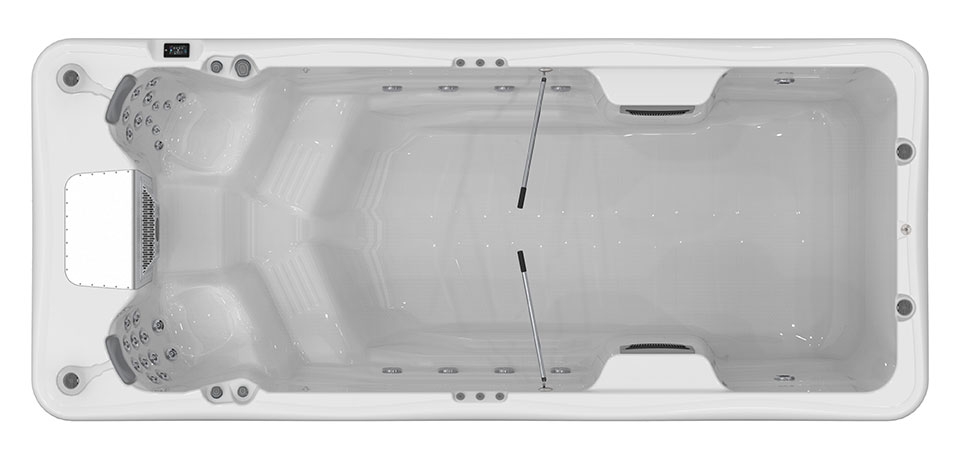

Amazonas 2019 Turbine

Exceptional solutions, available with semi cabinet design. We have now designed two sitting places, so you can use professional swimming and unique massage in parallel. A side-mounted filter housing is now placed at the end of the swimming area, so that the floating area is wider. Versatile use, perfect combination for swimming and children’s paddling.

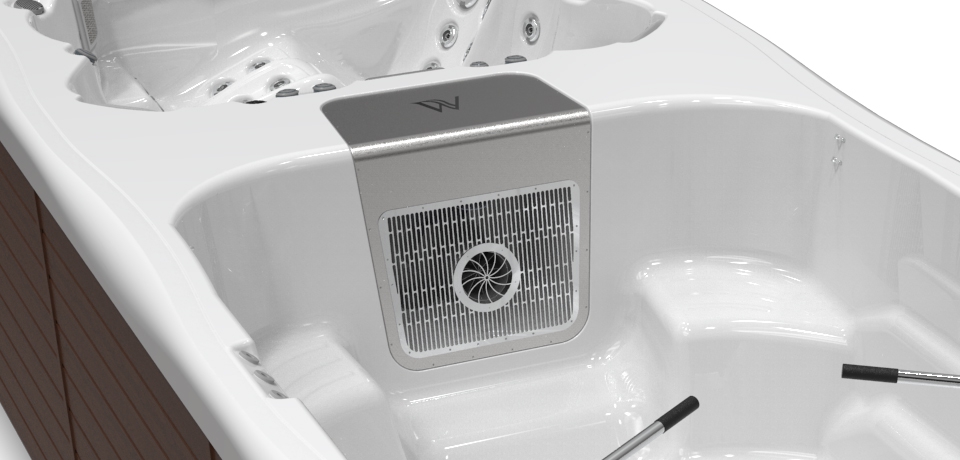

Turbine: extremely low power consumption with significantly high flow rate.

Net weight (kg) / Water volume (l)1 150 kg / 8 036l
FrameStainless steel
Side coverHorizontSide™ or semi-inground
ReinforcementFiberglass reinforced
InsulationPolyfoam (2 cm)
DrainsD50 ball valve
Power requirement3×20A 230V/50Hz
Control boxGecko (IN.YE-8)
Control panelSmartTouch
Total number of jets27 pcs
Laminar fountain jets6 pcs
Heater3 kW
Pumps (hydro massage)1 pc 3 HP single speed + Circ. pump
Pumps (swim spa)3 x 3 HP 2 speed
Cartridge filter4 pcs antibacterial paper filters
Water sanitizationUV-C
LED lights25 pcs LED + illumin. control valves
Headrests2 pcs
Sound systemAquaSoul™ Pro 4.1
SmartPhone app – wifi connectionYes
Thermo coverYes
Swimming stickYes
Heat exchanger preparationYes
